| Categories | Cartridge Filters |
|---|---|
| Brand | Maygo Pool Equipment Manufacturer |
| Model | AF100 |
| Operation Pressure | 80Kpa |
| Filtration Area | 2.25-13.72 m2 |
| Design Flow: | 5.5-33.4 m3/h |
| Inlet/Outlet: | 1.5/2inch |
| Diameter | 397mm |
Custom Factory Price Pool Cartridge Filter AF150 34m3/h for Pool,Pond,Sauna,Jacuzzi
Custom Factory Price Pool Cartridge Filter CF75 17m3/h for Pool,Pond,Sauna,Jacuzzi
Cartridge filtration is an effective trouble-free proven method of filtration Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool. As the build-up of dirtin the elementincreases so the water pressure rises and the flor decreases When the pressure reaches an unacceptable level. the element must be removed and cleaned(spray washing with a common gardein hose is generally sufficient.

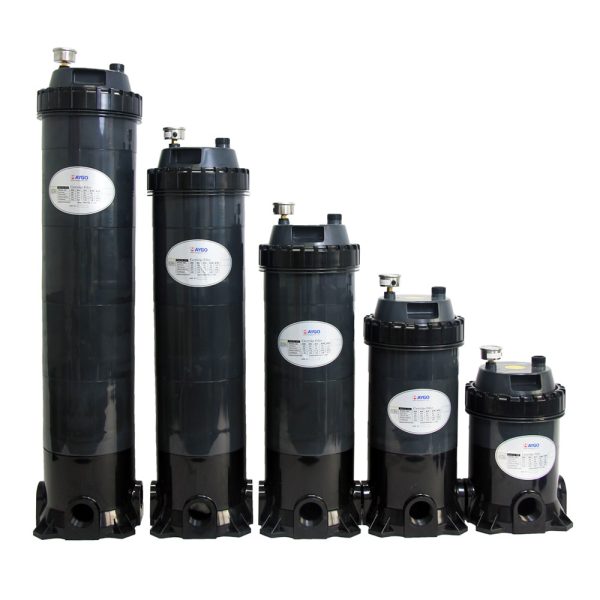

Performance Table
| Model | H(mm)A | H(mm) B | DM(mm)C | DM(mm)D | Filtration Area (m2) | Flow (m3/h) |
| AF25 | 445 | 387 | 225 | 397 | 2.25 | 5.5 |
| AF50 | 625 | 567 | 225 | 397 | 4.63 | 11.4 |
| AF75 | 805 | 747 | 225 | 397 | 7 | 17 |
| AF100 | 985 | 927 | 225 | 397 | 9.38 | 22.9 |
| AF150 | 1165 | 1107 | 225 | 397 | 13.72 | 33.4 |
Installation Sketch
