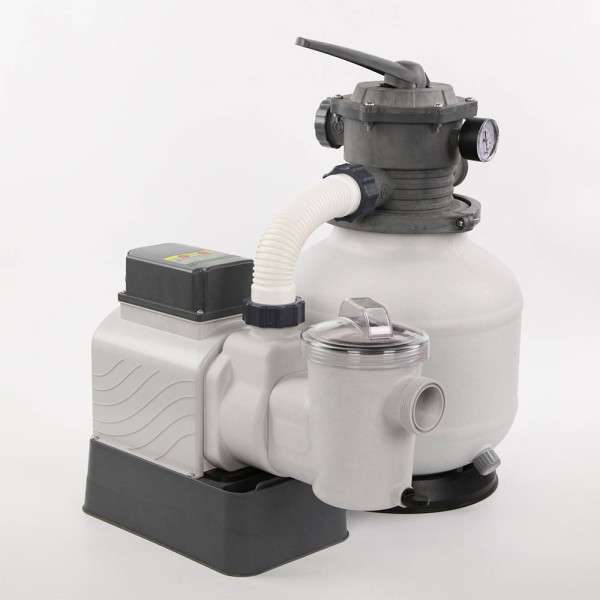

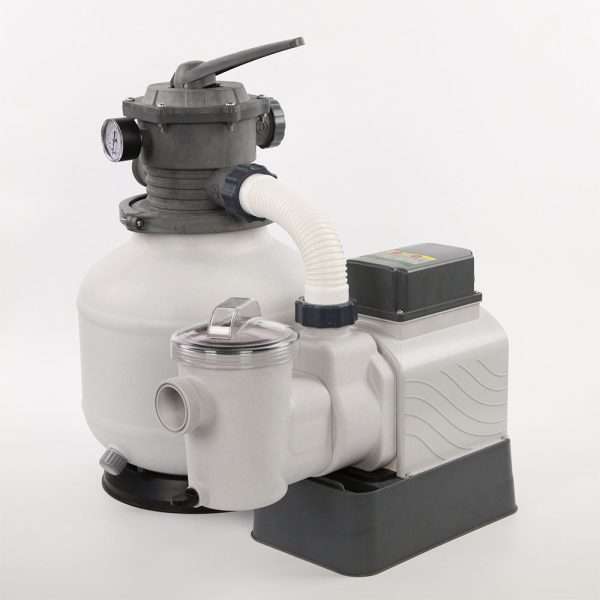

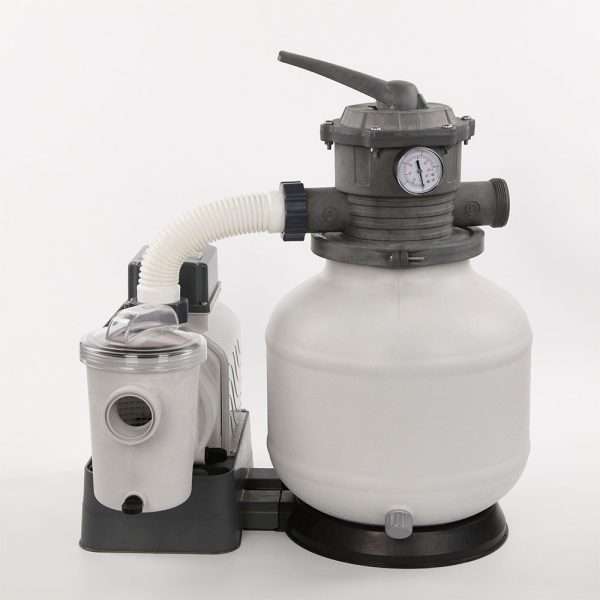

50Hz Factory Direct Supply Pool Filteration Systems For In/Above Ground 220V-240V Fiberglass Filter Pump 500mm
We Care Earth.Most of the components be made in new Zero Carbon Industrial Zone.The important CFD Hydraulic Model and Impeller be designed in Euro R&D center.
Performance Table
| Model | ∅ (inch/mm) |
Inlet& Outlet(inch) |
Flow (m³/h) |
Filtration Area(㎡) |
Filter Material (KG) | DM(mm) | Weight(KG) | Pump Power(HP) |
| QNGN-400 | 16″/∅400 | 1.5″ | 6 | 0.13 | 50 | 625*425*495 | 24 | 0.75HP/220V |
| QNGN-500 | 20″/∅500 | 1.5″ | 11 | 0.20 | 80 | 735*555*605 | 27 | 1HP/220V |
| QNGN-600 | 24″/∅600 | 1.5″ | 14 | 0.30 | 160 | 804*630*690 | 35.8 | 1.2HP/220V |
| QNGN-700 | 28″/∅700 | 1.5″ | 19 | 0.37 | 220 | 1030*750*800 | 46 | 1.5HP/220V |
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
First-class Motor
Protection class:IP55.Insulation class: F
Built-in overheat protection short circuit device
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor.
SS Shaft
High-precision Stainless Steel shaft with higher strength and reduce the noise
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.

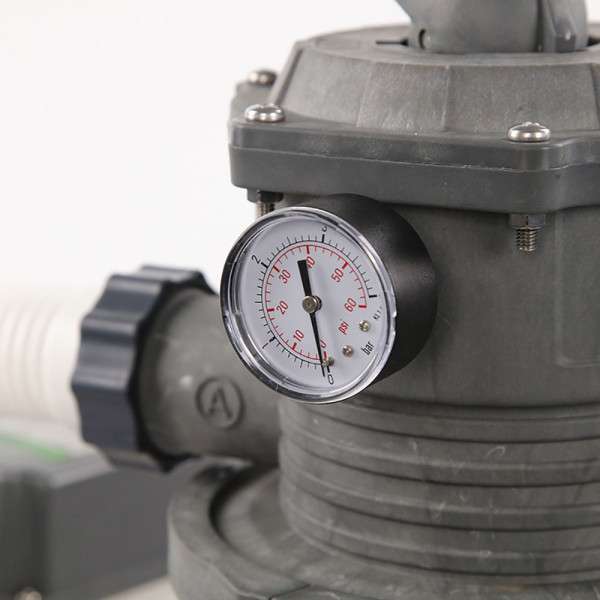

Multiport Valve
Easy to use multiport valve lets you select any of the valve/filter operation with a simple lever-action
Filter Basket
Material:PP
PE Filter
Compact and light weight.Clamp lock is designed to allow 360 degree rotation to simplify installation
