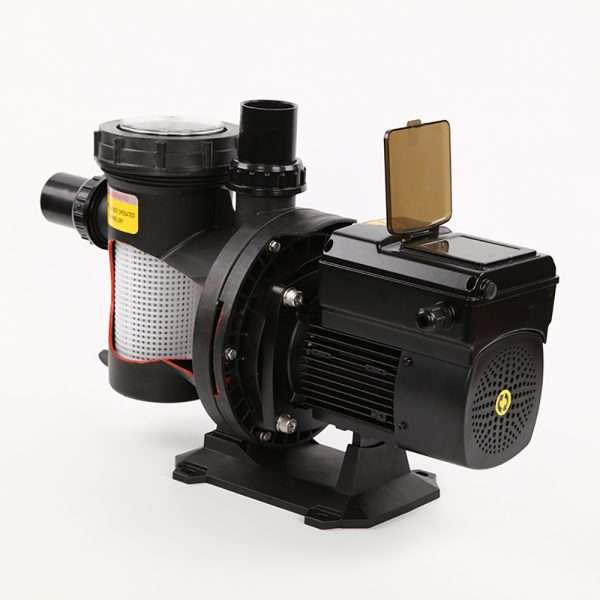

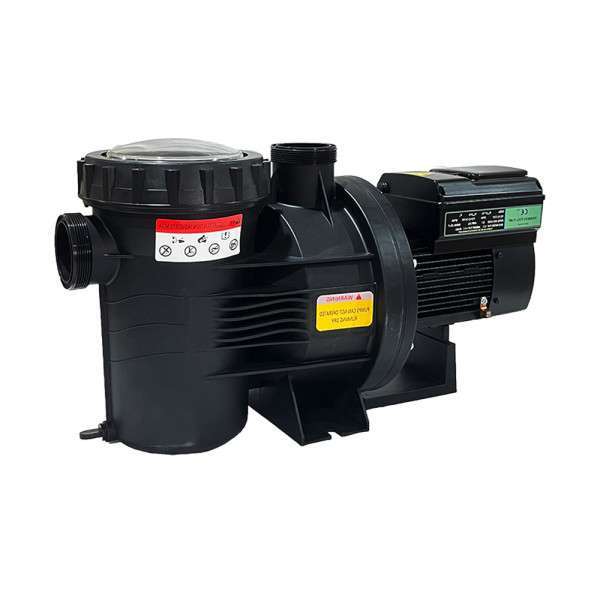

3HP VSP Pool Pump with Float Switch 600 LPM 50Hz 2Inch
●Permanent magnet synchronous motor(PMSM)
●IP55 protection grade with IE5 energy efficiency grade.

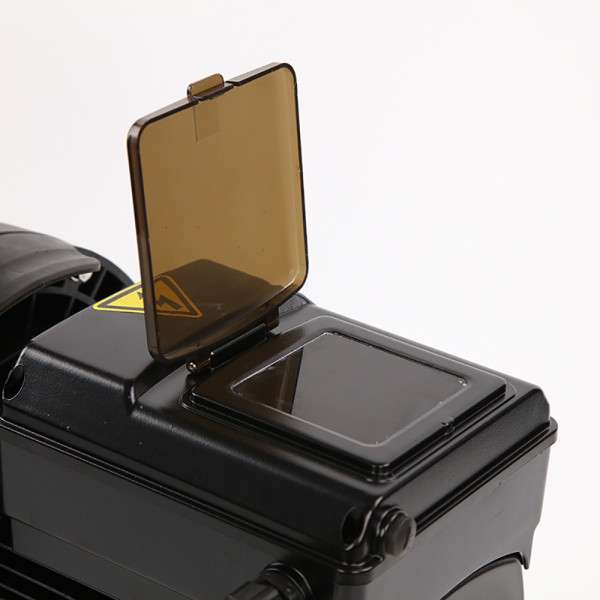

●The frequency conversion controller panel is a touch screen
● Flexible speed adjustment and real time display the parameters in screen.
● Power supply: single-phase voltage:220±10% with frequency:50/60Hz.
● Modular design and easy to install and maintain.
Parameter
|
Model
|
HP
|
GB
|
ANSI
|
V
|
Hz
|
L*W*H(cm)
|
GW(KG)
|
|
QNST100
|
1
|
∅50
|
∅48.5
|
208-240
|
50/60
|
58*26*39
|
11
|
|
QNST150
|
1.5
|
∅50
|
∅48.5
|
208-240
|
50/60
|
58*26*39
|
12
|
|
QNST200
|
2
|
∅63
|
∅60.3
|
208-240
|
50/60
|
76*35*44
|
16
|
|
QNST300
|
3
|
∅63
|
∅60.3
|
208-240
|
50/60
|
76*35*44
|
17
|
Performance Curve & Installation Sketch
PMSM Variable Speed
Permanent magnet synchronous frequency conversion all-in-one machine with IE5 top energy efficiency and wide voltage input.LCD screen display,manual touch operation,installation of APP can be connected through mobile phone WIFI or Bluetooth (Only wifi or bluetooth configuration can be chosed and can not be considered at the same time).Set the pump operation plan with two working modes of manual and automatic.
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
IE5 Efficiency
Saving 80% energy than ordinary pool pump

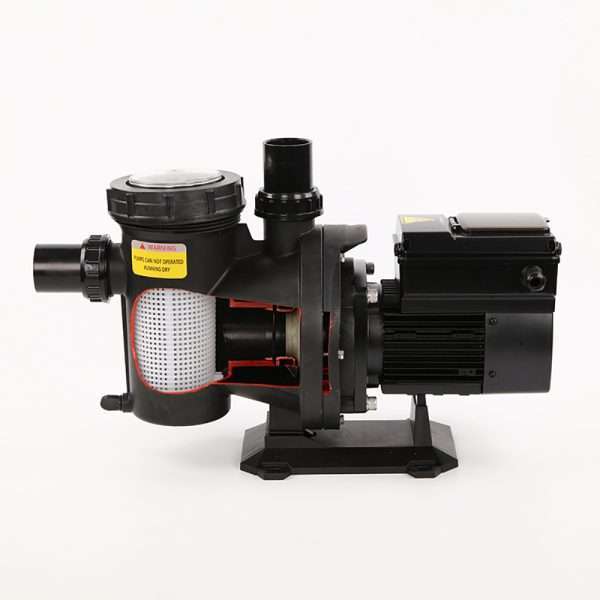

Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide

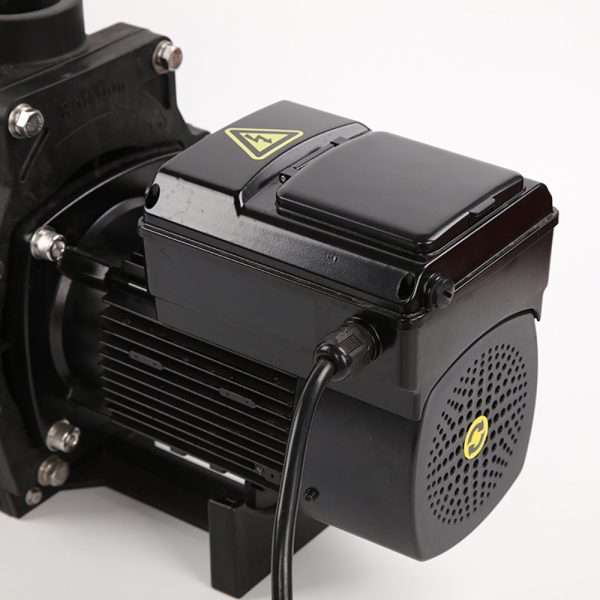

PMSM Motor & Inverter
High Efficiency Permanent Magnet Synchronous Motor
First class inverter
Smart Control
2 options control of APP and Bluetooth easy control
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Perspective Cover & Pressing Cap
Material PC+10%GF
Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
