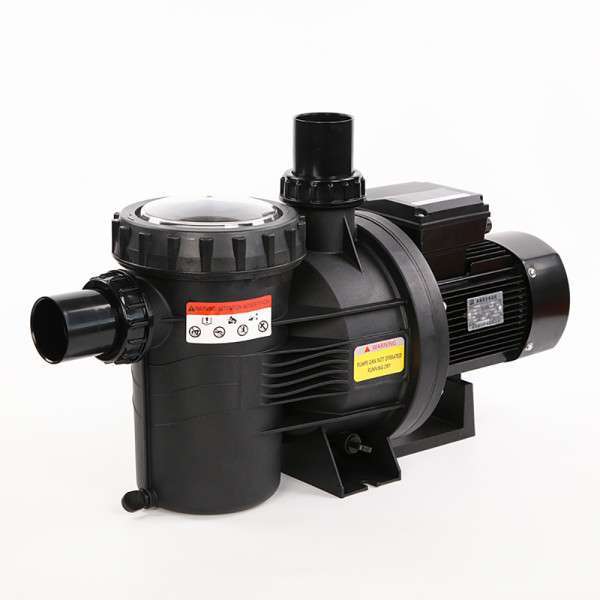

230V Voltage 1.5HP In-Ground Swimming Pool Pump Variable Speed 1.5″ Inlet High Flow Slip-On Fitting
QNST PMSM Variable Speed Pool Pump
Features
●Permanent magnet synchronous motor(PMSM) with advantages of light weight、small size、low energy consumption、high efficiency and small vibration.
●IP55 protection grade with integrated air duct design.Wide voltage input range and IE5 energy efficiency grade.
●The frequency conversion controller panel is a touch screen which has the advantages of simple and clear operation.
● Flexible speed adjustment and real time display the parameters in screen.
● Power supply: single-phase voltage:220±10% with frequency:50/60Hz.
Parameter
|
Model
|
HP
|
GB
|
ANSI
|
V
|
Hz
|
L*W*H(cm)
|
GW(KG)
|
|
QNST100
|
1
|
∅50
|
∅48.5
|
208-240
|
50/60
|
58*26*39
|
11
|
|
QNST150
|
1.5
|
∅50
|
∅48.5
|
208-240
|
50/60
|
58*26*39
|
12
|
|
QNST200
|
2
|
∅63
|
∅60.3
|
208-240
|
50/60
|
76*35*44
|
16
|
|
QNST300
|
3
|
∅63
|
∅60.3
|
208-240
|
50/60
|
76*35*44
|
17
|
Performance Curve & Installation Sketch
Drain Plug
Empty the pump water in freezing weather to prevent freezing.
Self-priming
When the pump runs for the first time,fill water to the bottom height of the water inlet liquid level and the priming height is 0.5-1.5m
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
IE5 Efficiency
Saving 80% energy than ordinary pool pump
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
PMSM Motor & Inverter
High Efficiency Permanent Magnet Synchronous Motor
First class inverter
Smart Control
2 options control of APP and Bluetooth easy control
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Perspective Cover & Pressing Cap
Material PC+10%GF
Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
