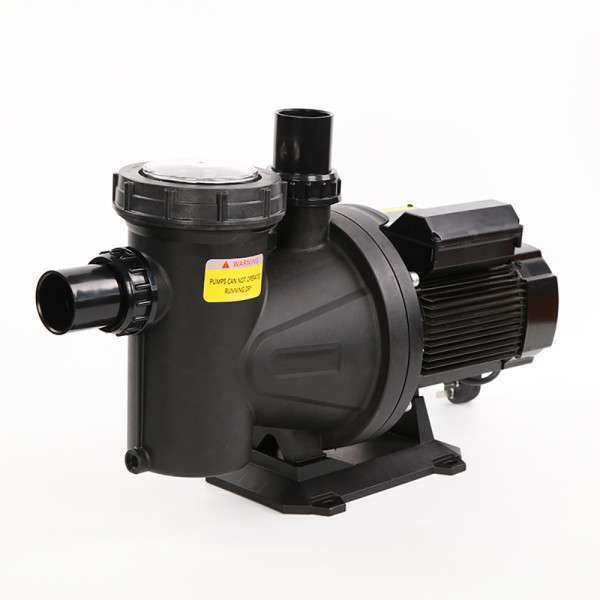

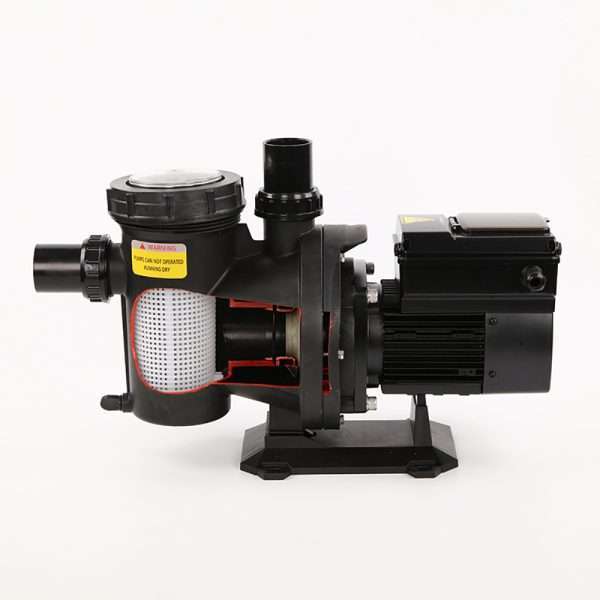

0.75KW Variable Speed Pool Pumps for In/Above Ground | PMSM Motor IE5 OEM/ODM
Material
●Engineering plastics made flow passage component
●Mechanical seal material:Graphite/Silicon Carbide
●O-ring:NBR
●Aluminium motor casing
Parameter
|
Model
|
HP
|
GB
|
ANSI
|
V
|
Hz
|
L*W*H(cm)
|
GW(KG)
|
|
QNST100
|
1
|
∅50
|
∅48.5
|
208-240
|
50/60
|
58*26*39
|
11
|
|
QNST150
|
1.5
|
∅50
|
∅48.5
|
208-240
|
50/60
|
58*26*39
|
12
|
|
QNST200
|
2
|
∅63
|
∅60.3
|
208-240
|
50/60
|
76*35*44
|
16
|
|
QNST300
|
3
|
∅63
|
∅60.3
|
208-240
|
50/60
|
76*35*44
|
17
|
Performance Curve & Installation Sketch
Drain Plug
Empty the pump water in freezing weather to prevent freezing.
Self-priming
When the pump runs for the first time,fill water to the bottom height of the water inlet liquid level and the priming height is 0.5-1.5m
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
IE5 Efficiency
Saving 80% energy than ordinary pool pump

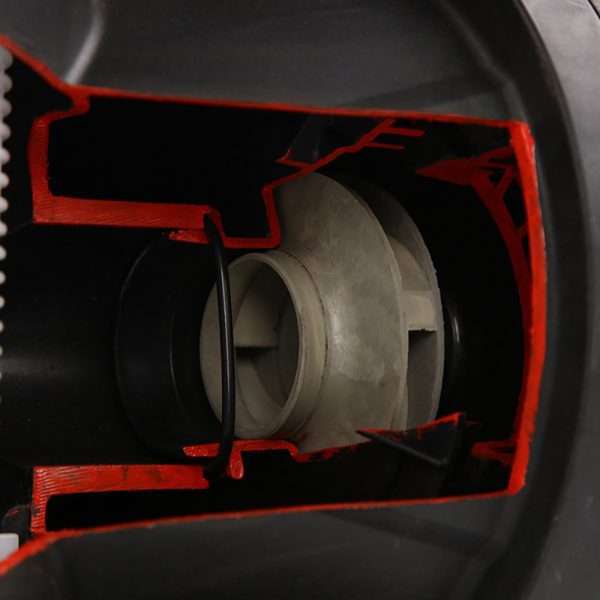

Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide

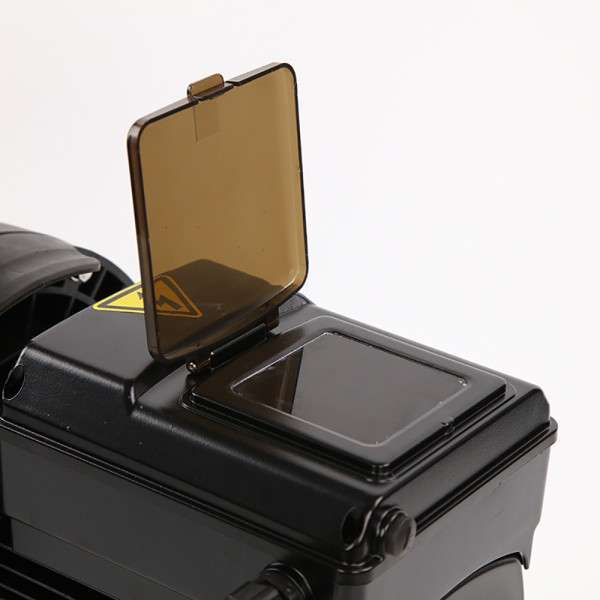

PMSM Motor & Inverter
High Efficiency Permanent Magnet Synchronous Motor
First class inverter
Smart Control
2 options control of APP and Bluetooth easy control
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Perspective Cover & Pressing Cap
Material PC+10%GF

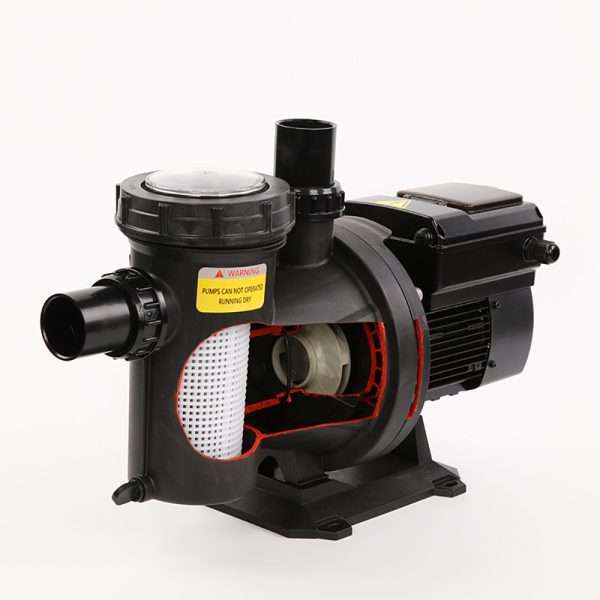

Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
